continuity of protective and equipotential bondings,
light intensity measurement,
phase sequence test,
motor rotation direction test.
Automatic installation safety test
MPI-535 allows safety control of residential, commercial and industrial electrical installations. Measurements can be easily automated with:
auto mode of residual current devices (RCD) tests,
auto measurements – freely configurable measuring sequences,
AutoISO-1000C adapter for automatic insulation resistance test of 3-, 4- and 5-conductor cables, without switching.
Ease of reading
The device is equipped with a color TFT LCD touch screen with a resolution of 800×480 pixels and a diagonal of 7”, which allows for convenient operation and easy reading of parameters and plotted waveforms. This screen size enables displaying more information, available at any time of use. The interface is visible in all conditions – also thanks to the appropriate size of displayed symbols. Included stylus allows to work also with dielectric gloves.
The device has built-in help screens with measurement diagrams. Thanks to this you can easily and quickly check and make sure how to connect to a given system depending on the type of performed measurement.
Increased resistance to environmental conditions
The MPI-535 meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP51. It is resistant to mechanical damage, and a special design allows you to easily protect the touch screen by shielding using the cover of the meter. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in different positions.
Communication and software
A very strong feature of the device is the multitude of communication interfaces and cooperation with external software. You can easily transfer measurement data to your computer via USB port, removable SD memory card, or wireless communication (Bluetooth*, Wi-Fi ).
In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.
Technical Specifications
Measurement functions
Measurement range
Display rangea
Resolution
Accuracy
Fault loop impedance
Fault loop ZL-PE, ZL-N, ZL-L
0.13 Ω…1999.9 Ω acc. to IEC 61557
0.000 Ω…1999.9 Ω
from 0.001 Ω
±(5% m.v. + 30 digits)
Fault loop ZL-PE in RCD mode
from 0.50 Ω…1999 Ω acc. to IEC 61557
0.00 Ω…1999 Ω
od 0.01 Ω
from ±(6% m.v. + 5 digits)
Measurements of RCD parameters
RCD tripping test and measurement of tripping time tA measuring current 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn
general and short-time delay RCD
0 ms…300 ms
0 ms…300 ms
1 ms
from ±(2% m.v. + 2 digits)
selective RCD
0 ms…500 ms
0 ms…500 ms
1 ms
from ±(2% m.v. + 2 digits)
Measurement of RCD tripping current IA measuring current 0.2 IΔn…2.0 IΔn
for sinusoidal residual current (AC type)
3.3 mA…1000 mA
3.3 mA…1000 mA
from 0.1 mA
±5% IΔn
for unidirectional residual current and unidirectional with the 6 mA DC bias (type A)
3.5 mA…700 mA
3.5 mA…700 mA
from 0.1 mA
±10% IΔn
for direct residual current (type B)
2.0 mA…1000 mA
2.0 mA…1000 mA
from 0.1 mA
±10% IΔn
Earth resistance
3- and 4-pole method
from 0.50 Ω…1.99 kΩ acc. to IEC 61557-5
0.00 Ω…1.99 kΩ
from 0.01 Ω
from ±(2% m.v. + 3 digits)
3-pole + clamp method
0.00 Ω…1.99 kΩ
0.00 Ω…1.99 kΩ
from 0.01 Ω
from ±(2% m.v. + 4 digits)
2-clamp method
0.00 Ω…99.9 kΩ
0.00 Ω…99.9 kΩ
from 0.01 Ω
from ±(10% m.v. + 4 digits)
Resistance-to-earth
0.0 Ωm…99.9 kΩm
00 Ωm…99.9 kΩm
from 0.01 Ω
Depending on accuracy of RE measurement
Insulation resistance
Measuring voltage 50 V
50 kΩ…250 MΩ acc. to IEC 61557-2
0 kΩ…250 MΩ
from 1 kΩ
from ±(3% m.v. + 8 digits)
Measuring voltage 100 V
100 kΩ…500 MΩ acc. to IEC 61557-2
0 kΩ…500 MΩ
from 1 kΩ
from ±(3% m.v. + 8 digits)
Measuring voltage 250 V
250 kΩ…999 MΩ acc. to IEC 61557-2
0 kΩ…999 MΩ
from 1 kΩ
from ±(3% m.v. + 8 digits)
Measuring voltage 500 V
500 kΩ…2.00 GΩ acc. to IEC 61557-2
0 kΩ…2.00 GΩ
from 1 kΩ
from ±(3% m.v. + 8 digits)
Measuring voltage 1000 V
1000 kΩ…9.99 GΩ acc. to IEC 61557-2
0 kΩ…9.99 GΩ
from 1 kΩ
from ±(3% m.v. + 8 digits)
Resistance of protective conductors and equipotential bondings
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current
0.12 Ω…400 Ω acc. to IEC 61557-4
0.00 Ω…400 Ω
from 0.01 Ω
±(2% m.v. + 3 digits)
Measurement of resistance with low current
0.0 Ω…1999 Ω
0.0 Ω…1999 Ω
from 0.1 Ω
±(3% m.v. + 3 digits)
Light intensity
Measurement in luxes (lx)
0 lx…399.9 klx
0 lx…399.9 klx
from 0.001 lx
from ±(2% m.v. + 5 digits)
Measurement in feet-candles (fc)
0 fc…39.99 kfc
0 fc…39.99 kfc
from 0.001 fc
from ±(2% m.v. + 5 digits)
Phase sequence indication
in the same direction (correct), opposite direction (incorrect), UL-L voltage: 95 V…500 V (45 Hz…65 Hz)

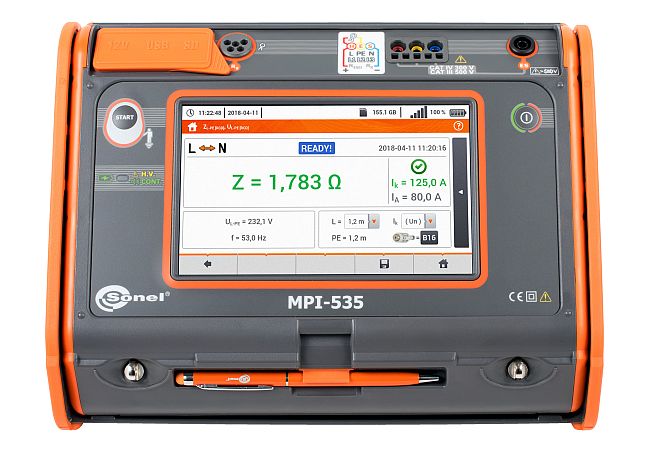

MPI-535 Multi-function meter WMGBMPI535
Description
Maximum functionality in a minimum price
The meter offers a wide range of functionalities. It combines the measuring capabilities of several devices, while ensuring equally good accuracy.
MPI-535 can be used for all measurements for commissioning of electrical installations in accordance with applicable regulations:
Automatic installation safety test
MPI-535 allows safety control of residential, commercial and industrial electrical installations. Measurements can be easily automated with:
Ease of reading
The device is equipped with a color TFT LCD touch screen with a resolution of 800×480 pixels and a diagonal of 7”, which allows for convenient operation and easy reading of parameters and plotted waveforms. This screen size enables displaying more information, available at any time of use. The interface is visible in all conditions – also thanks to the appropriate size of displayed symbols. Included stylus allows to work also with dielectric gloves.
The device has built-in help screens with measurement diagrams. Thanks to this you can easily and quickly check and make sure how to connect to a given system depending on the type of performed measurement.
Increased resistance to environmental conditions
The MPI-535 meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP51. It is resistant to mechanical damage, and a special design allows you to easily protect the touch screen by shielding using the cover of the meter. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in different positions.
Communication and software
A very strong feature of the device is the multitude of communication interfaces and cooperation with external software. You can easily transfer measurement data to your computer via USB port, removable SD memory card, or wireless communication (Bluetooth*, Wi-Fi ).
In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.
Technical Specifications
