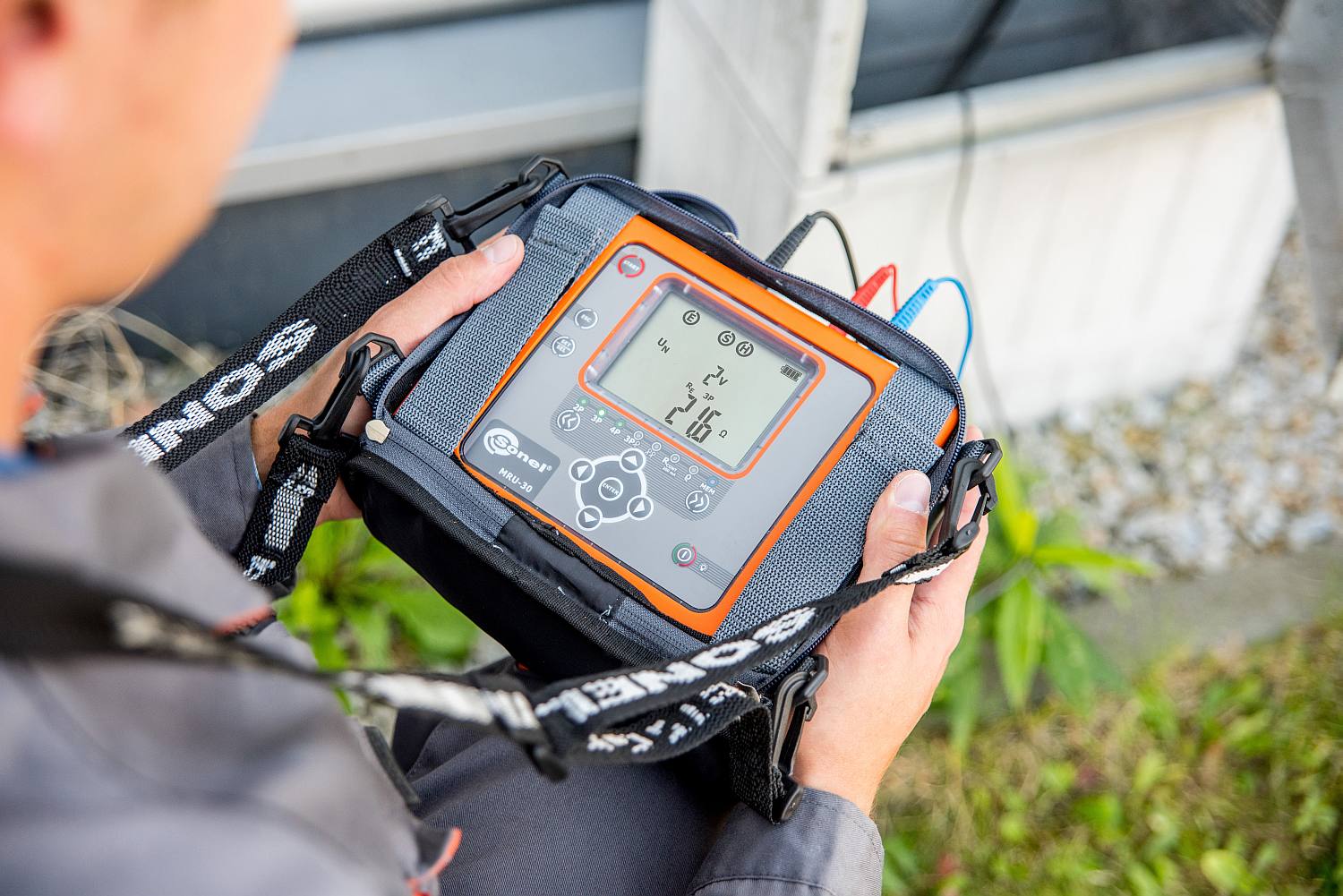

The Sonel MRU-30 uses most known methods of earth resistance measurements. Tests can be performed using the 3-pole, 4-pole, 3-pole with auxiliary clamp and also, additionally, the MRU-30 employs the two clamp method of measurement, without the use of auxiliary test rods which can’t be used in some situations. Complementary features of the MRU-30 are measurements of soil resistivity, continuity measurement of protective and equipotential conductors and, using clamps, leakage currents and interference voltages.
Robust and weatherproof (IP65) – no ingress of dust, water protected by a nozzle against enclosure from any direction.
Ergonomic casing – small and handy casing to make the measurements more convenient than before.
Built-in rechargeable battery – saving time to replace flat batteries; can be recharged from Power Bank and Cigarette Lighter Socket!
Clear on-screen notes – displayed on screen before and after the measurement to alert user of possible dangers and irregularities.
Many measurement methods available in a small, portable casing.
Technical Specifications
It allows to take the measurements of:
earthing resistance using auxiliary electrodes,
earthing resistance using auxiliary electrodes and clamp (for measurements of multiple earthing),
earthing resistance using double clamps for measuring multiple earthing without underground connections.
ground resistivity (Wenner method),
continuity of equipotential bondings and protective
conductors (meeting the requirements IEC 60364) with auto-zero function – with current 200mA.
Additionally:
measurement of resistance of auxiliary electrodes RS and RH,
measurement of interference voltage,
measurement in the presence of interference voltage in the power network
with frequency 50Hz, 60Hz,
selection of maximum measuring voltage (25V and 50V),
introducing the distance between the electrodes for the resistivity in metres (m) and feet (ft),
memory of 990 measurements (10 banks of 99 cells each),
calibration of clamp used,
data transmission to the computer (USB),
indication of battery state.
Measurement of interference voltage UN (RMS)
Range
Resolution
Accuracy
0…100 V
1 V
±(10% m.v. + 1 digit)
Measurement of continuity of equipotential bondings and protective conductors (Rcont)
measurement range to IEC 61557-4:2007: 0,13 Ω…1999 Ω
Range
Resolution
Accuracy
0,00…9,99 Ω
0,01 Ω
±(2% m.v. + 3 digits)
10,0…99,9 Ω
0,1 Ω
100…1999 Ω
1 Ω
• measurement current: under short circuit >200mA
• frequency of measurement current: 125 Hz (for networks 50 Hz) and 150 Hz (for networks 60 Hz)
Measurement of earthing resistance (method 3- and 4-pole)
measurement range to IEC 61557-5:2007: 0,53 Ω…9999 Ω (dla 50 V)
Range
Resolution
Accuracy
0,00…19,99 Ω
0,01 Ω
±(3% m.v. + 3 digits)
20,0…199,9 Ω
0,1 Ω
200,0…1999 Ω
1 Ω
±5% m.v.
2000…9999 Ω
1 Ω
±8% m.v.
• measurement current: under short circuit >20 mA,
• voltage on open terminals: selectable 25 V AC or 50 V AC,
• frequency of measurement current: 125 Hz (for networks 50 Hz) or 150 Hz (for 60 Hz).
Measurement of multiple earthing esistance with using the clamp and auxiliary electrodes (3p + clamp)
Range
Resolution
Accuracy
0,00…19,99 Ω
0,01 Ω
±(3% m.v. + 3 digits)
20,0…199,9 Ω
0,1 Ω
200…1999 Ω
1 Ω
±5% m.v.
2000…9999 Ω
1 Ω
±8% m.v.
• voltage on open terminals: selectable 25 V AC or 50 V AC,
• measurement current: under short circuit >20 mA,
• frequency of measurement current: 125 Hz (for networks 50 Hz) and 150 Hz (for networks 60 Hz) Measurement of resistance of auxiliary electrodes RH i RS
Range
Resolution
Accuracy
0…999 Ω
1 Ω
±(5% m.v.+ 8 digits)
1,00k…9,99 kΩ
0,01 kΩ
10,0k…19,9 kΩ
0,1 kΩ
Measurement of multiple earthing resistance with using double clamps
Range
Resolution
Accuracy
0,00…19,99 Ω
0,01 Ω
±(10% m.v. + 8 digits)
20,0…99,9 Ω
0,1 Ω
±(20% m.v. + 3 digits)
• frequency of measurement current: 125 Hz (for networks 50 Hz) and 150 Hz
(for networks 60 Hz)
Measurement of ground resistivity
Measurement method: Wenner, ρ=2πLRE
Range
Resolution
Accuracy
0,00…9,99 Ωm
0,01 Ωm
depending on measurement
accuracy RE with 4p method,
but not less than ±1 digit
10,0…99,9 Ωm
0,1 Ωm
100…999 Ωm
1 Ωm
1,00…9,99 kΩm
0,01 kΩm
10,0…99,9 kΩm
0,1 kΩm
100…999 kΩm
1 kΩm
L – distance between probes: 1…50 m.. or 1…150 ft
Electric security:
type of insulation: double, according to EN 61010-1 i IEC 61557,

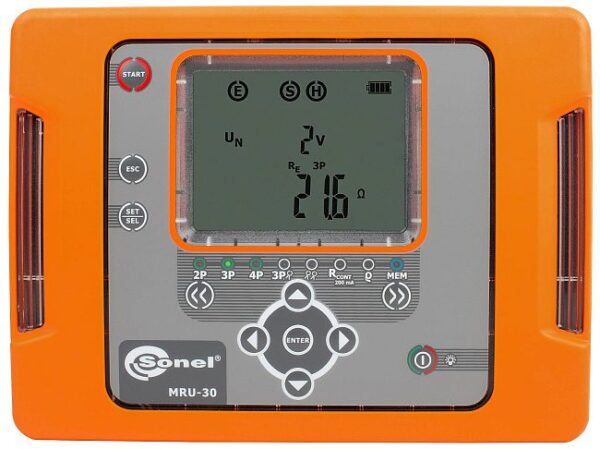

MRU-30 Earth Resistance and Resistivity Meter WMGBMRU30
Description
The Sonel MRU-30 uses most known methods of earth resistance measurements. Tests can be performed using the 3-pole, 4-pole, 3-pole with auxiliary clamp and also, additionally, the MRU-30 employs the two clamp method of measurement, without the use of auxiliary test rods which can’t be used in some situations. Complementary features of the MRU-30 are measurements of soil resistivity, continuity measurement of protective and equipotential conductors and, using clamps, leakage currents and interference voltages.
Technical Specifications
It allows to take the measurements of:
Additionally:
Measurement of interference voltage UN (RMS)
Measurement of continuity of equipotential bondings and protective conductors (Rcont)
measurement range to IEC 61557-4:2007: 0,13 Ω…1999 Ω
±(2% m.v. + 3 digits)
• measurement current: under short circuit >200mA
• frequency of measurement current: 125 Hz (for networks 50 Hz) and 150 Hz (for networks 60 Hz)
Measurement of earthing resistance (method 3- and 4-pole)
measurement range to IEC 61557-5:2007: 0,53 Ω…9999 Ω (dla 50 V)
±(3% m.v. + 3 digits)
• measurement current: under short circuit >20 mA,
• voltage on open terminals: selectable 25 V AC or 50 V AC,
• frequency of measurement current: 125 Hz (for networks 50 Hz) or 150 Hz (for 60 Hz).
Measurement of multiple earthing esistance with using the clamp and auxiliary electrodes (3p + clamp)
±(3% m.v. + 3 digits)
• voltage on open terminals: selectable 25 V AC or 50 V AC,
• measurement current: under short circuit >20 mA,
• frequency of measurement current: 125 Hz (for networks 50 Hz) and 150 Hz (for networks 60 Hz)
Measurement of resistance of auxiliary electrodes RH i RS
±(5% m.v.+ 8 digits)
Measurement of multiple earthing resistance with using double clamps
• frequency of measurement current: 125 Hz (for networks 50 Hz) and 150 Hz
(for networks 60 Hz)
Measurement of ground resistivity
Measurement method: Wenner, ρ=2πLRE
depending on measurement
accuracy RE with 4p method,
but not less than ±1 digit
L – distance between probes: 1…50 m.. or 1…150 ft
Electric security:
Rated operational conditions:
Other technical data:
