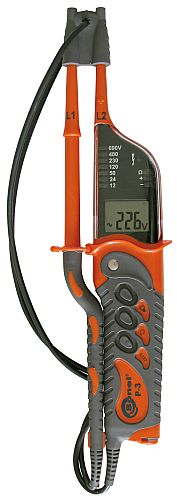

P3 Voltage And Continuity Tester WMGBP3

Description

P-3 can effectively check phase detection, and could be used for resistance measurement & circuit continuity tests.

P-3 Voltage and continuity tester functionality includes:

• AC/DC voltage measurement and indication
• Resistance measurement and circuit continuity testing
• Indication of phase rotation
• Single pole testing for phase detection
• RCD testing
• Identification and adjustment of phase

Specifications

AC/DC voltage measurement and indication:

• on LED bargraf for values: 12, 24, 50, 120, 230, 400, 690 V (indication of voltage with and without batteries),
• display of measurement result in the LCD screen,
• determination of voltage: alternating or polarisation of constant voltage.

Resistance measurement and circuit continuity test:

• display of measurement result in the LCD screen,
• signaling for resistance <400 kΩ.

Indicator of phase rotation:

• indication of phase sequence for voltage >100 V.

Single pole test for phase detection:

• indication by means of touch electrode,
• optical and acoustic signaling for voltage >50 V.

RCD test:

• RCD test I_Δn ≤100 mA.

Identification and adjustment of phase:

• phase determination at given socket referring to the other one,
• possibility of phase determination at given socket with using additional transmitter – without time limit related to the synchronization of runs.

Terminals Ø2 mm/4 mm.

Illumination of measurement point.

DATA HOLD function, for holding measured values.

Meter meets the requirements of the standards EN 61010, IEC/EN 61243 – 3 EMC.

AC/DC voltage measurement

Range	Resolution	Accuracy (AC)	Accuracy (DC)
6,0…49,9 V	0,1 V	±(3% m.v. +4 digits)	±(3% m.v. + 3 digits)
50…750 V	1 V	±(2% m.v. +3 digits)

Resistance measurement

Range	Resolution	Accuracy
0…1999 Ω	1 Ω	±(3% m.v. + 8 digits)
